Offer - Fan Coil Ferroli Top Fan Plus Mod Vm-B 100 + Commutator Cm-F

Description

COMPLETE WITH CM-F ON/OFF CABINET SWITCH

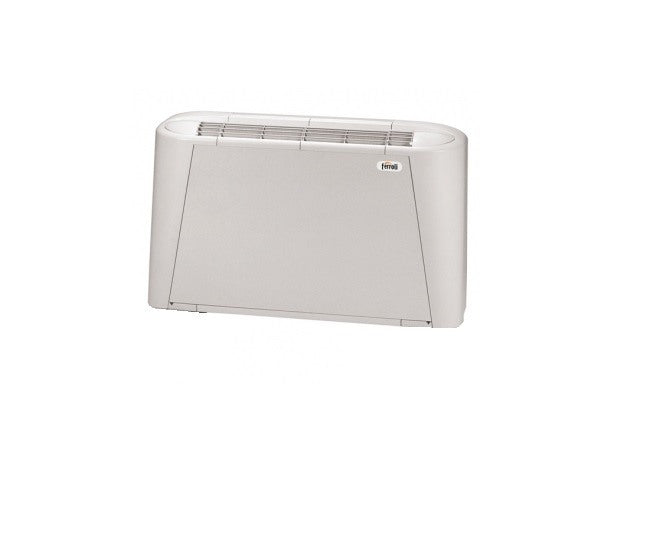

FAN COIL FAN COIL FERROLI TOP FAN PLUS mod. VM-B 100 + free CM-F switch


  • Max-min cooling capacity: 6100-4400 W
  • Max-min heat output: 14900-9600W
  • Dehumidification: 2100g/h
  • Max-min air flow: 1200-670 m3/h
  • No. of fans: 2
  • Max-min sound power: 61-49 db(A)
  • Max-min sound pressure: 52-40 db(A)
  • 3R main battery connections: 3/4"
  • 1R extra battery connections: 1/2 "
  • Water content batt.3R: 2.42 l
  • Water content batt.1R: 0.64 l
  • Power supply: 230-1-50 [VF-Hz]
  • Dimensions (HxWxD): 554+100 x 1440 x 220 mm; 34kg

Notes :

  • Heating: temp. Ambient air: 20°C; temp. Inlet water: 70°C, Δt water 10°C at maximum fan speed; for medium and minimum fan speed, water flow as in maximum speed.

  • Cooling: temp. Room Air: 27°C DB 19°C WBtemp. Inlet water: 7°C, Δt water 5°C at maximum
    fan speed; for medium and minimum fan speed, water flow rate as in maximum speed.


TOP FAN PLUS

Consisting of a fan, a heat exchange element and a filter, fan coil units are ideal machines for summer air conditioning and winter heating of the house and any room.
Fed with chilled water from a cooler, they make the air in the room fresh, dry and clean in a very short time and with great energy efficiency; fed with hot water from a heat pump or boiler, they provide clean and economical heat during the winter season.

Series with centrifugal fan, available in 9 sizes and three versions:

  • VM-B with casing for vertical and horizontal installation and suction from below
  • VM-F with casing for vertical and horizontal installation and front suction
  • VN without casing for vertical and horizontal installation

Characteristics:

  • Cover cabinet obtained by integrating parts in plastic material and parts in galvanized sheet metal, oven painted with epoxy powders Supporting structure in galvanized steel
  • Finned pack heat exchange coil with aluminum fins and copper pipes, brass manifolds specially designed to guarantee low pressure drops
  • Air filter easy to remove and clean, regenerable by washing or blowing
  • Fan unit with three-speed motor and aluminum impellers
  • Wide range of controls both to be installed on the machine and remote on the wall
SWITCH:

  • It has a selector for the Summer / Off / Winter function, while the second selects the Min / Med / Max fan speed.
  • Available in two different versions:
  • - for installation on CM-F cabinet
  • - for CMR-F remote installation

Two series of panels are available for this type of installation: ON THE MACHINE for installation of the fan coil on the floor (models VM-B, VM-F), REMOTE ON THE WALL for installation of the fan coil on the ceiling (models VM-B, VM- F) or false ceiling (model VN). Each of the series includes three types of control, switch, basic thermostat and advanced thermostat.

NEW (OPTIONAL)

REMOTE CONTROL Infrared remote control (for all sizes and versions) with liquid crystal display complete with support bracket for wall mounting, which allows the following functions:

  • Switching on\Switching off
  • Operating modes (Hot/Cool/AutoChange Over/Ventilation only - presence of valves required-)
  • Fan speed (Max/Med/Min/Auto)
  • Set point temperature
  • Timer setting
  • °C or °F temperature scale setting

VISIBLE RECEIVER Located on the front panel of the unit, it is complete with Timer led (yellow), operating led (green) and emergency ON/OFF and reception zone key. The system completes with the card inside the unit. The system is supplied already installed and tested in the company.

WALL-MOUNTED RECEIVER (FLUSH MOUNTING) The receiver is supplied in the case of recessed units and is positioned visible on the false ceiling. It is complete with Timer led (yellow), operating led (green) and button for emergency ON/OFF and reception area. It is supplied with a multipolar cable (max length 0.8 metres) for rapid connection and with the electronic board to be installed on the unit. It can be removed from the machine; the testing of the system takes place in the company while the positioning of the receiver is the responsibility of the installer.


Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Offer - Fan Coil Ferroli Top Fan Plus Mod Vm-B 100 + Commutator Cm-F

Product form

COMPLETE WITH CM-F ON/OFF CABINET SWITCH FAN COIL FAN COIL FERROLI TOP FAN PLUS mod. VM-B 100 + free CM-F... Read more

€317,00€249,00 Incl. VAT

    Description

    COMPLETE WITH CM-F ON/OFF CABINET SWITCH

    FAN COIL FAN COIL FERROLI TOP FAN PLUS mod. VM-B 100 + free CM-F switch


    • Max-min cooling capacity: 6100-4400 W
    • Max-min heat output: 14900-9600W
    • Dehumidification: 2100g/h
    • Max-min air flow: 1200-670 m3/h
    • No. of fans: 2
    • Max-min sound power: 61-49 db(A)
    • Max-min sound pressure: 52-40 db(A)
    • 3R main battery connections: 3/4"
    • 1R extra battery connections: 1/2 "
    • Water content batt.3R: 2.42 l
    • Water content batt.1R: 0.64 l
    • Power supply: 230-1-50 [VF-Hz]
    • Dimensions (HxWxD): 554+100 x 1440 x 220 mm; 34kg

    Notes :

    • Heating: temp. Ambient air: 20°C; temp. Inlet water: 70°C, Δt water 10°C at maximum fan speed; for medium and minimum fan speed, water flow as in maximum speed.

    • Cooling: temp. Room Air: 27°C DB 19°C WBtemp. Inlet water: 7°C, Δt water 5°C at maximum
      fan speed; for medium and minimum fan speed, water flow rate as in maximum speed.


    TOP FAN PLUS

    Consisting of a fan, a heat exchange element and a filter, fan coil units are ideal machines for summer air conditioning and winter heating of the house and any room.
    Fed with chilled water from a cooler, they make the air in the room fresh, dry and clean in a very short time and with great energy efficiency; fed with hot water from a heat pump or boiler, they provide clean and economical heat during the winter season.

    Series with centrifugal fan, available in 9 sizes and three versions:

    • VM-B with casing for vertical and horizontal installation and suction from below
    • VM-F with casing for vertical and horizontal installation and front suction
    • VN without casing for vertical and horizontal installation

    Characteristics:

    • Cover cabinet obtained by integrating parts in plastic material and parts in galvanized sheet metal, oven painted with epoxy powders Supporting structure in galvanized steel
    • Finned pack heat exchange coil with aluminum fins and copper pipes, brass manifolds specially designed to guarantee low pressure drops
    • Air filter easy to remove and clean, regenerable by washing or blowing
    • Fan unit with three-speed motor and aluminum impellers
    • Wide range of controls both to be installed on the machine and remote on the wall
    SWITCH:

    • It has a selector for the Summer / Off / Winter function, while the second selects the Min / Med / Max fan speed.
    • Available in two different versions:
    • - for installation on CM-F cabinet
    • - for CMR-F remote installation

    Two series of panels are available for this type of installation: ON THE MACHINE for installation of the fan coil on the floor (models VM-B, VM-F), REMOTE ON THE WALL for installation of the fan coil on the ceiling (models VM-B, VM- F) or false ceiling (model VN). Each of the series includes three types of control, switch, basic thermostat and advanced thermostat.

    NEW (OPTIONAL)

    REMOTE CONTROL Infrared remote control (for all sizes and versions) with liquid crystal display complete with support bracket for wall mounting, which allows the following functions:

    • Switching on\Switching off
    • Operating modes (Hot/Cool/AutoChange Over/Ventilation only - presence of valves required-)
    • Fan speed (Max/Med/Min/Auto)
    • Set point temperature
    • Timer setting
    • °C or °F temperature scale setting

    VISIBLE RECEIVER Located on the front panel of the unit, it is complete with Timer led (yellow), operating led (green) and emergency ON/OFF and reception zone key. The system completes with the card inside the unit. The system is supplied already installed and tested in the company.

    WALL-MOUNTED RECEIVER (FLUSH MOUNTING) The receiver is supplied in the case of recessed units and is positioned visible on the false ceiling. It is complete with Timer led (yellow), operating led (green) and button for emergency ON/OFF and reception area. It is supplied with a multipolar cable (max length 0.8 metres) for rapid connection and with the electronic board to be installed on the unit. It can be removed from the machine; the testing of the system takes place in the company while the positioning of the receiver is the responsibility of the installer.


    Product Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
