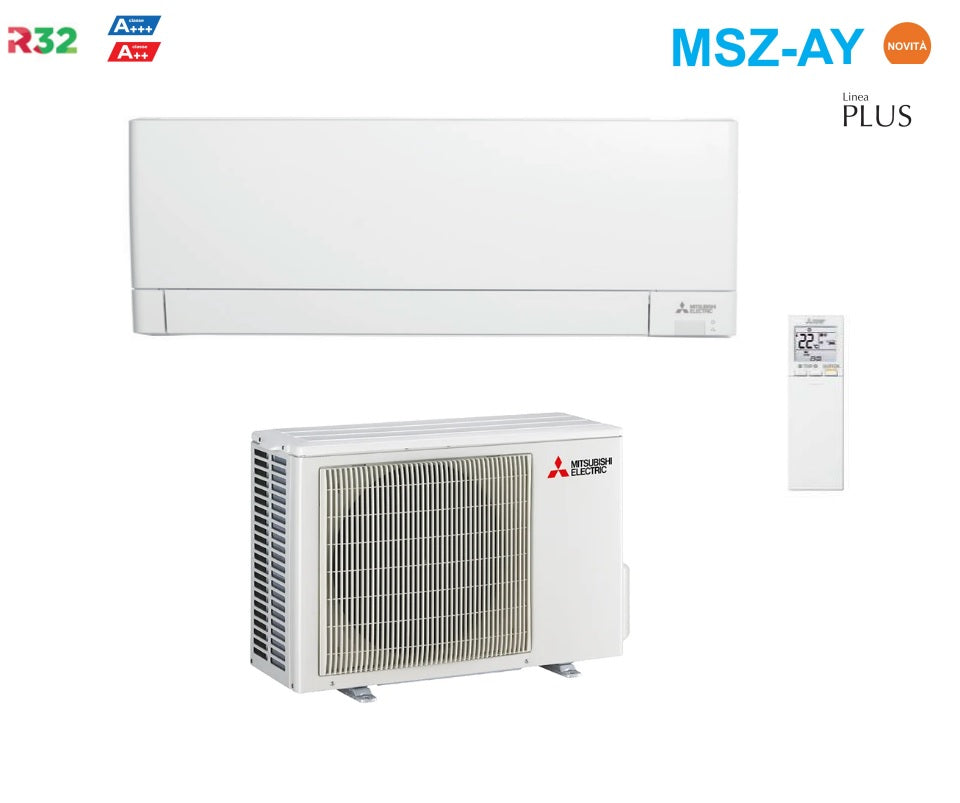

icon Offer - Mitsubishi Electric Inverter Air Conditioner Plus Line Msz-Ay / Ap Series 12000 Btu Msz-Ay35vgkp+Muz-Ap35vg Class A+++/A++ Integrated Wi-Fi R-32 | CaldaieMurali

Offer - Mitsubishi Electric Inverter Air Conditioner Plus Line Msz-Ay / Ap Series 12000 Btu Msz-Ay35vgkp+Muz-Ap35vg Class A+++/A++ Integrated Wi-Fi R-32

Description

OFFER - Mitsubishi Electric Inverter Air Conditioner Plus Line MSZ-AY / AP series 12000 Btu MSZ-AY35VGKP+MUZ-AP35VG Class A+++/A++ Integrated Wi-Fi R-32


Model:
  • Indoor Unit catalog code : MSZ-AY35VGKP
  • Catalog code Outdoor Unit: MUZ-AP35VG
  • Power : 12000 Btu
  • Integrated Wi-Fi

Energy efficiency:

  • SEER: 8.6
  • SCOP: 4.7
  • Energy Efficiency Class in Cooling : A+++
  • Heating Energy Efficiency Class: A++
  • Annual energy consumption in Cooling : 142 kWh/a
  • Annual energy consumption in Heating: 862 kWh/a

Performance

  • Cooling Capacity: 3.5 kW
  • Heating Capacity: 4.0 kW
  • Indoor unit sound pressure : 18 - 42 dB(A)
  • External unit sound pressure : 49/50 dB(A)
Electrical data
  • Power supply (V,Hz, Ø) : 220~240/50/1
  • Refrigerant gas : R-32
  • Operating range :
    - Cooling : -10° ~ +46° C
    - Heating : -20 ~ +24°C
Installation data
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Maximum piping length: 20 m
  • Maximum height difference Indoor Unit / Outdoor Unit: 12 m

Dimensions and weight

  • Internal Unit Dimensions (HxWxD): 299x798x245 mm
  • Indoor Unit Weight: 11 Kg
  • Outdoor Unit HxWxD (mm) : 550 x 800 x 285 ; 35kg
  • Weight of Outdoor Unit: 27 kg

New MSZ-AY Series

The new MSZ-AY model represents a new standard in the world of residential air conditioning. With a renewed aesthetic, quality materials with a "velvety" finish, careful attention to comfort with its only 18dBA of sound pressure and the equipment of the "Plasma Quad Plus" active filtration device, MSZ-AY contains the best Mitsubishi Electric technology in an ultra-compact size.


Self clean mode

The new «Self Clean» function on MSZ-AY allows you to dry the internal unit at the end of the cooling cycle, preventing the formation of mold and bad smells.


Quad PIUS Plasma Filter supplied

The Plasma Quad PLUS system is an active filtration system capable of inhibiting up to 99% of viruses, bacteria, molds and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust.

Optional V Blocking air purifying filter

V Blocking is a new purifying filter that improves the previous silver ion filtering system, adding an antiviral action capable of inhibiting viruses, bacteria, molds and allergens

Efficiency

Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new MSZ-AY units has significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating across the entire lineup.


Dual Barrier Coating

With the MSZ-AY unit, Mitsubishi Electric introduces another revolutionary technology: Dual Barrier Coating. During operation, the dust and impurities introduced during the air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.
With Dual Barrier Coating the internal components of MSZ-AY are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for unit maintenance in relation to this problem.

Silent operation

Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level that is virtually imperceptible to the human ear. The 18dB(A) achieved by the MSZ-AY model is quieter than the noise generated by leaves rustling in the wind, making the air conditioner effectively inaudible to the occupants of the room.
This is why MSZ-AY is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.


Night Mode: maximum discretion and silence

By activating the Night Mode function from the remote control, it is possible to set the air conditioner for night-time operation:

* LED brightness reduction
* Mute "beep" sound
* 3dB reduction of external unit sound emission

Air distribution

Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in the room in any operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying drafts towards the occupants.

Integrated MEL Ioud

The new MSZ-AY offers the user experience of MelCloud integrated into the air conditioner, allowing the user to remotely manage, thanks to the Wi-Fi controller, the main functions of the air conditioner and monitoring its operation and energy consumption.
Furthermore, thanks to the new integrated wifi adapter, connection with the router is even easier!

Backlit remote control

The backlit remote control allows easy viewing even at night.

Installation template

The new MSZ-AY is equipped with a new installation template. The new template has a large central hole which makes installation easier especially in the presence of predisposition boxes.


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Offer - Mitsubishi Electric Inverter Air Conditioner Plus Line Msz-Ay / Ap Series 12000 Btu Msz-Ay35vgkp+Muz-Ap35vg Class A+++/A++ Integrated Wi-Fi R-32

Product form

OFFER - Mitsubishi Electric Inverter Air Conditioner Plus Line MSZ-AY / AP series 12000 Btu MSZ-AY35VGKP+MUZ-AP35VG Class A+++/A++ Integrated Wi-Fi... Read more

€999,00€900,00 Incl. VAT

    Description

    OFFER - Mitsubishi Electric Inverter Air Conditioner Plus Line MSZ-AY / AP series 12000 Btu MSZ-AY35VGKP+MUZ-AP35VG Class A+++/A++ Integrated Wi-Fi R-32


    Model:
    • Indoor Unit catalog code : MSZ-AY35VGKP
    • Catalog code Outdoor Unit: MUZ-AP35VG
    • Power : 12000 Btu
    • Integrated Wi-Fi

    Energy efficiency:

    • SEER: 8.6
    • SCOP: 4.7
    • Energy Efficiency Class in Cooling : A+++
    • Heating Energy Efficiency Class: A++
    • Annual energy consumption in Cooling : 142 kWh/a
    • Annual energy consumption in Heating: 862 kWh/a

    Performance

    • Cooling Capacity: 3.5 kW
    • Heating Capacity: 4.0 kW
    • Indoor unit sound pressure : 18 - 42 dB(A)
    • External unit sound pressure : 49/50 dB(A)
    Electrical data
    • Power supply (V,Hz, Ø) : 220~240/50/1
    • Refrigerant gas : R-32
    • Operating range :
      - Cooling : -10° ~ +46° C
      - Heating : -20 ~ +24°C
    Installation data
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Maximum piping length: 20 m
    • Maximum height difference Indoor Unit / Outdoor Unit: 12 m

    Dimensions and weight

    • Internal Unit Dimensions (HxWxD): 299x798x245 mm
    • Indoor Unit Weight: 11 Kg
    • Outdoor Unit HxWxD (mm) : 550 x 800 x 285 ; 35kg
    • Weight of Outdoor Unit: 27 kg

    New MSZ-AY Series

    The new MSZ-AY model represents a new standard in the world of residential air conditioning. With a renewed aesthetic, quality materials with a "velvety" finish, careful attention to comfort with its only 18dBA of sound pressure and the equipment of the "Plasma Quad Plus" active filtration device, MSZ-AY contains the best Mitsubishi Electric technology in an ultra-compact size.


    Self clean mode

    The new «Self Clean» function on MSZ-AY allows you to dry the internal unit at the end of the cooling cycle, preventing the formation of mold and bad smells.


    Quad PIUS Plasma Filter supplied

    The Plasma Quad PLUS system is an active filtration system capable of inhibiting up to 99% of viruses, bacteria, molds and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust.

    Optional V Blocking air purifying filter

    V Blocking is a new purifying filter that improves the previous silver ion filtering system, adding an antiviral action capable of inhibiting viruses, bacteria, molds and allergens

    Efficiency

    Thanks to careful planning and the introduction of R32 refrigerant, the efficiency of the new MSZ-AY units has significantly increased, reaching class A+++ in cooling (sizes 25 and 35) and A++ in heating across the entire lineup.


    Dual Barrier Coating

    With the MSZ-AY unit, Mitsubishi Electric introduces another revolutionary technology: Dual Barrier Coating. During operation, the dust and impurities introduced during the air conditioning operations are deposited on the internal components, especially the battery and fan, increasing the machine's consumption by up to 18%.
    With Dual Barrier Coating the internal components of MSZ-AY are treated with a second protective layer which prevents the deposit of dust and impurities even after long periods of time, reducing consumption and eliminating the need for unit maintenance in relation to this problem.

    Silent operation

    Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. The Kirigamine line allows you to guarantee the ideal climate all year round with a sound level that is virtually imperceptible to the human ear. The 18dB(A) achieved by the MSZ-AY model is quieter than the noise generated by leaves rustling in the wind, making the air conditioner effectively inaudible to the occupants of the room.
    This is why MSZ-AY is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.


    Night Mode: maximum discretion and silence

    By activating the Night Mode function from the remote control, it is possible to set the air conditioner for night-time operation:

    * LED brightness reduction
    * Mute "beep" sound
    * 3dB reduction of external unit sound emission

    Air distribution

    Thanks to the presence of the motorized louver, it is possible to direct the air flow to achieve maximum comfort in the room in any operating mode (sizes 25-50). Furthermore, the horizontal flow eliminates annoying drafts towards the occupants.

    Integrated MEL Ioud

    The new MSZ-AY offers the user experience of MelCloud integrated into the air conditioner, allowing the user to remotely manage, thanks to the Wi-Fi controller, the main functions of the air conditioner and monitoring its operation and energy consumption.
    Furthermore, thanks to the new integrated wifi adapter, connection with the router is even easier!

    Backlit remote control

    The backlit remote control allows easy viewing even at night.

    Installation template

    The new MSZ-AY is equipped with a new installation template. The new template has a large central hole which makes installation easier especially in the presence of predisposition boxes.


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 35.0 kg
    • classe energetica raffreddamento: A+++
    • classe energetica riscaldamento: A++
    • gas: R-32
    • marca: MITSUBISHI ELECTRIC
    • modello: MSZ-AY35VGKP+MUZ-AP35VG
    • potenza btu: 12000
    • superficie riscaldabile mq: 35
