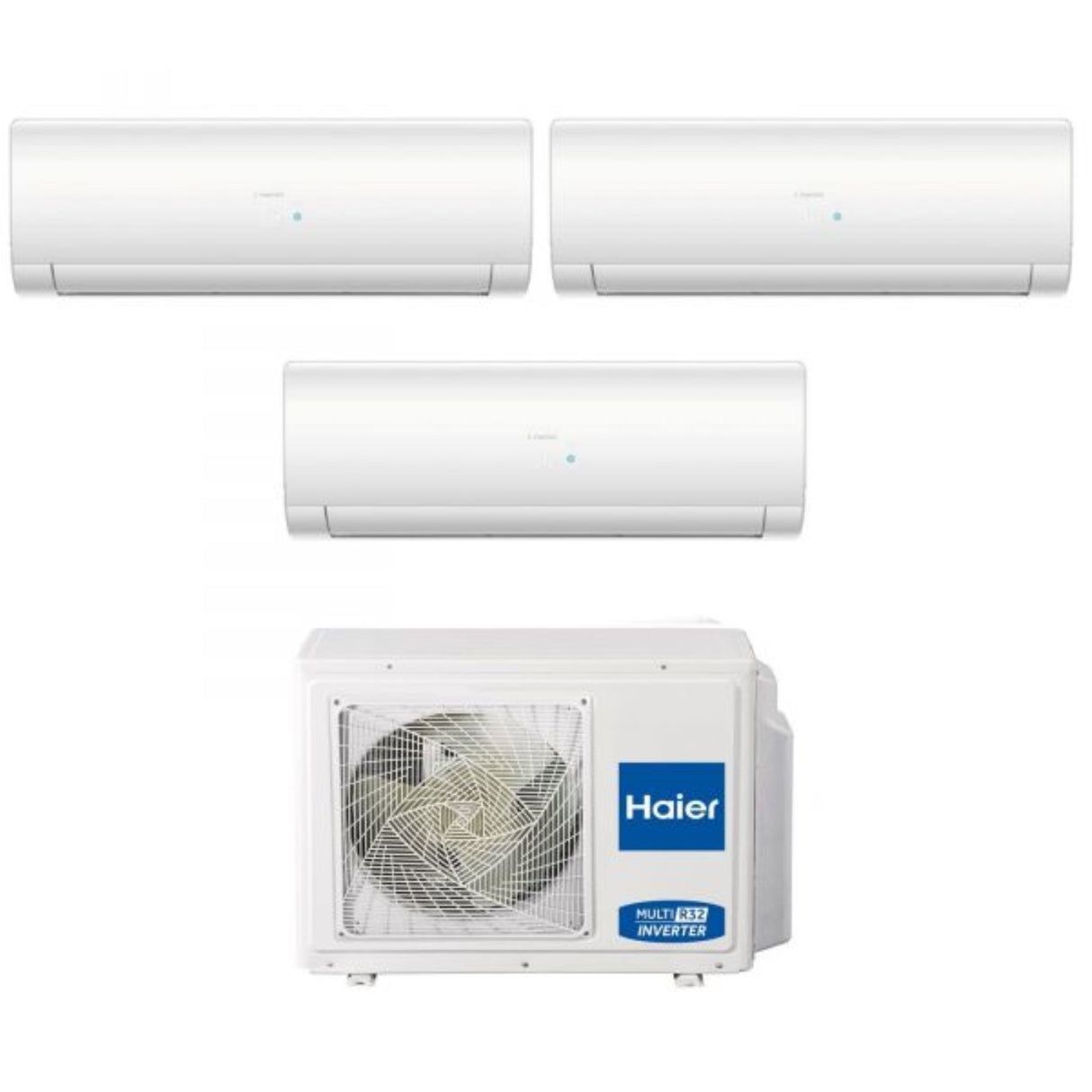

Haier Trial Split Inverter Air Conditioner Ies Plus 7+7+12 Series With 3u55s2sr3fa R-32 Integrated Wi-Fi 7000+7000+12000 - New

Description

Technical features

Indoor units

1) Model

  • Indoor Unit Catalog Code : 2x AS20S2SF2FA-3
  • Indoor Unit Commercial Code: 2501300A2
  • Power: 7000 btu/h
  • Cooling Capacity : 2.0 kW
  • Heating Capacity : 2.5 kW
  • Treated Air: 600 m 3 /h
  • Sound Power Level : 53 dB(A)
  • Sound pressure level : 19~38 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (LxPxH): 870x196x301 mm
  • Indoor Unit Weight: 9.5 Kg
  • Integrated Wi-Fi

2) Model

  • Indoor Unit Catalog Code: 1x AS35S2SF2FA-3
  • Indoor Unit Commercial Code: 2501302A2
  • Power: 12000 btu/h
  • Cooling Capacity : 3.5 kW
  • Heating Capacity : 4.2 kW
  • Treated Air: 650 m 3 /h
  • Sound Power Level : 55 dB(A)
  • Sound Pressure Level : 20~39 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (LxPxH): 870x196x301 mm
  • Indoor Unit Weight: 9.5 Kg
  • Integrated Wi-Fi

Outdoor Unit

Model:

  • Catalog code Outdoor Unit: 3U55S2SR3FA
  • Outdoor Unit Commercial Code: 2502325G2
  • Max indoor units: up to 3 indoor units

Energy efficiency:

  • SEER: 8.5
  • SCOP : 4.0
  • Cooling Energy Efficiency Class: A+++
  • Heating Energy Efficiency Class: A+
  • Annual energy consumption in Cooling : 227 kWh/a
  • Annual energy consumption in Heating : 1678 kWh/a

Performance:

  • Cooling Capacity: 5.5 kW
  • Heating Capacity: 6.8 kW
  • Std cooling absorption: 1.35 kW
  • Std heating absorption: 1.66 kW
  • Sound power level : 64 dB(A)
  • Sound pressure level : 51 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Guaranteed temperature range:
  • - Cooling: -10° ~ 46°C
  • - Heating: -15° ~ 24° C
Installation data
  • Pipe diameter Liquid : 6.35 mm (1/4") x3
  • Gas pipe diameter : 9.52 mm (3/8") x3
  • Maximum Piping Length: 50 m
  • Maximum height difference Indoor Unit / Outdoor Unit: 15 m

Dimensions:

  • External Unit Dimensions (LxPxH): 890x340x700 mm
  • Weight of Outdoor Unit: 51.0 Kg

5 years of peace of mind with the Haier Plus 5 Guarantee

Register your new air conditioner and activate the Haier Warranty in just a few steps

Garanzia

To do this, keep at hand:
  • The serial numbers to register
  • Your personal and login details
  • The data of the technician contacted

Models from years prior to 2019 and the following lines are not covered by the Plus 5 Guarantee: Geos +, Hec, Portable, Water heaters, Air barriers, MRV, Chillers, heat recovery units


R-32 Multisplit Haier

The earth, everyone's home. Let's protect it!

Compared to 100 years ago, the global temperature has increased by almost 0.5°C (from 1981 to 1990 +0.48°C). Global warming has attracted the attention of all countries, the main cause of the temperature increase is the release of greenhouse gases into the atmosphere. To remedy the situation, the Montreal Protocol was signed in 1987 and the Kyoto Protocol in 1997. In 2009, the European Union introduced the F-Gas regulation and it was approved in December 2013. The new rules came into force in May 2014 and January 2015. Without the rules indicated by the F-Gas regulation, we would produce 150,000 tons of CO2 per year.

Very low environmental impact refrigerant

Haier offers products that comply with the requirements of the European Union's environmental protection standards. To avoid dangerous damage to the environment, Europe is working to reduce greenhouse gas emissions and improve energy efficiency. Units with R32 refrigerant contain less gas and having a lower GWP than R410A units have a lower impact on global warming.

GWP = Global Warming Potential

The global warming potential (GWP, in Italian global warming potential) is the measure of how much a molecule of a certain greenhouse gas impacts on the greenhouse effect; the index is based on a relative scale which compares each gas with carbon dioxide, whose GWP has the value 1 by definition. Each GWP value is calculated for a specific time interval.

In terms of comparison, the GWP of the R32 refrigerant is equivalent to a value of 675, while the GWP of the R410A refrigerant corresponds to a value of 2088.

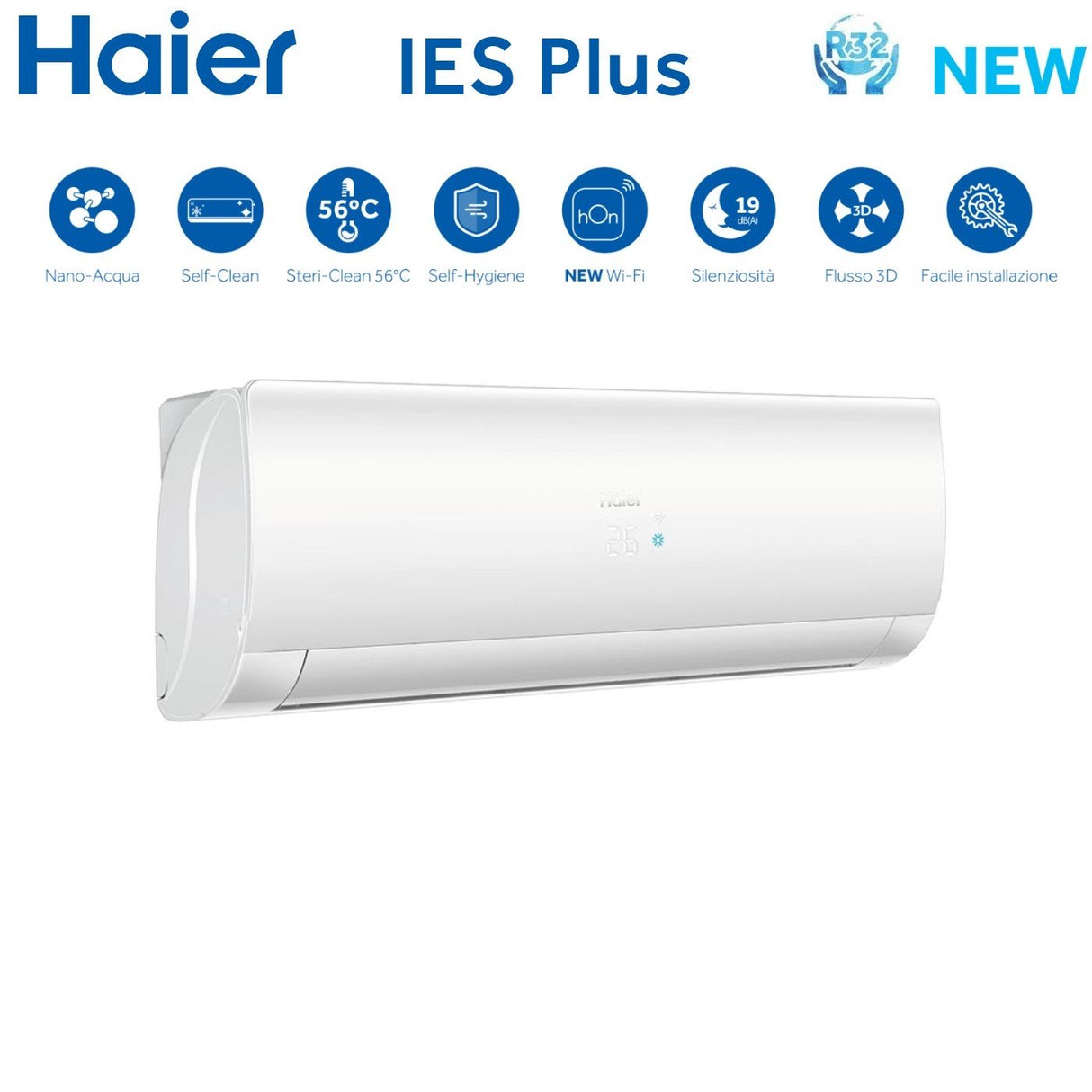

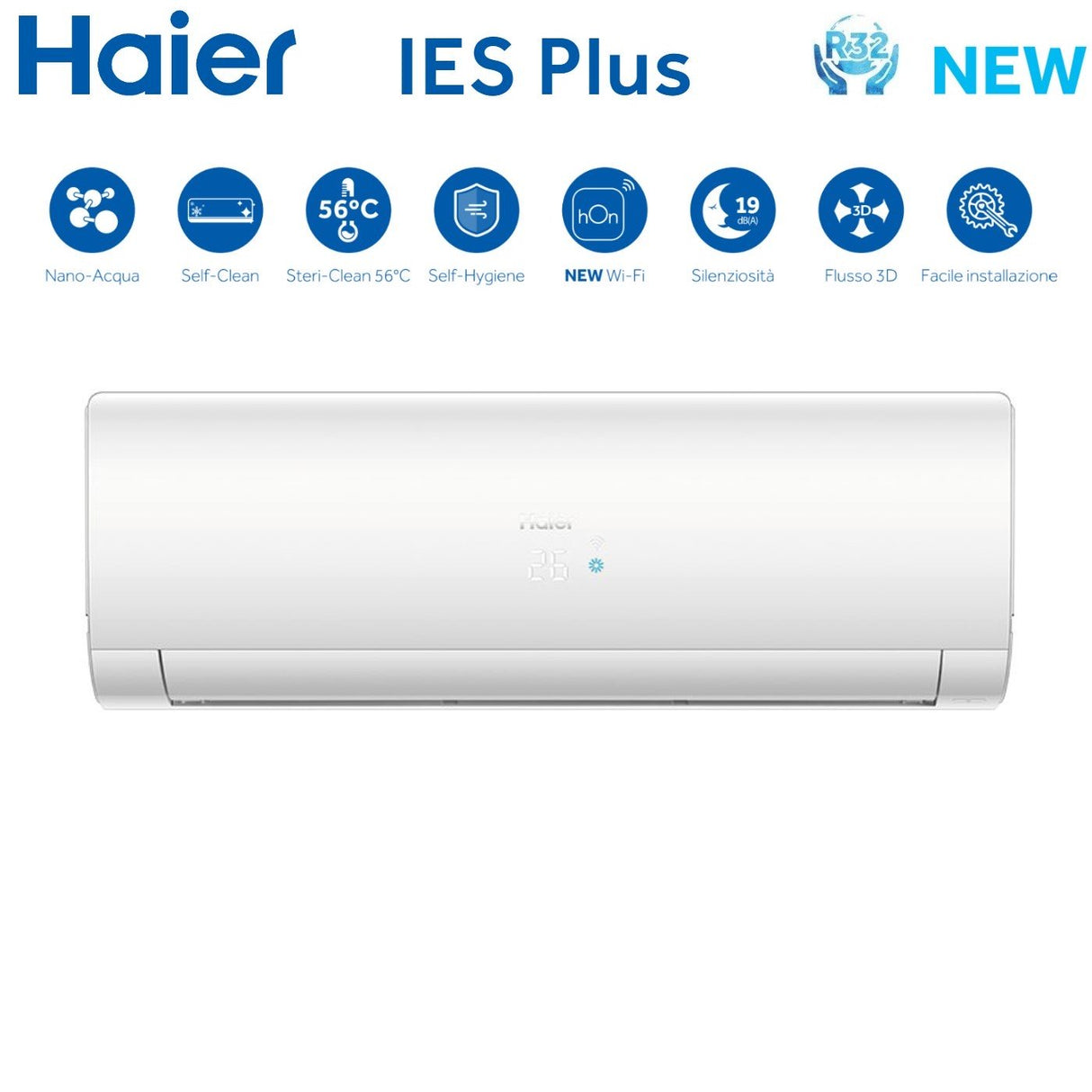

Haier IES PLUS

Ies Plus


Smart

With the Haier "hOn" application, you can control all the appliances of the Haier group in your Smart Home from your smartphone or tablet with a single app. Furthermore, through hOn, all the basic functions , purification functions and much more can be managed. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control

Smart Ies Plus


Purification

The Nano-Water sterilization system improves air quality by providing a refreshing and well-being sensation , like the one you can experience in a forest, while staying comfortably at home.

The IES Plus air conditioner offers further purification thanks to Steri-Clean 56°C, Self-Hygiene and Self-Clean technologies

Purificazione Ies


Comfort

Low sound level: 19 dB(A) A low noise level ensures peace of mind thanks to the optimized design of the fan, air ducts and motor.

Comfort Ies Plus

3D Airflow Continuous movement of the vertical and horizontal louvers directs the airflow anywhere in the room


Plus Product

• Nano-Water

• Self Clean

• Steri-Clean 56°C

• Self Hygiene

• Wi-Fi control with hOn App to remotely control the air conditioner

• Low sound level

• 3D airflow: continuous movement of the horizontal and vertical deflectors

• Easy installation


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Haier Trial Split Inverter Air Conditioner Ies Plus 7+7+12 Series With 3u55s2sr3fa R-32 Integrated Wi-Fi 7000+7000+12000 - New

Product form

Technical features Indoor units 1) Model Indoor Unit Catalog Code : 2x AS20S2SF2FA-3 Indoor Unit Commercial Code: 2501300A2 Power: 7000... Read more

€1.533,00 Incl. VAT

    Description

    Technical features

    Indoor units

    1) Model

    • Indoor Unit Catalog Code : 2x AS20S2SF2FA-3
    • Indoor Unit Commercial Code: 2501300A2
    • Power: 7000 btu/h
    • Cooling Capacity : 2.0 kW
    • Heating Capacity : 2.5 kW
    • Treated Air: 600 m 3 /h
    • Sound Power Level : 53 dB(A)
    • Sound pressure level : 19~38 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (LxPxH): 870x196x301 mm
    • Indoor Unit Weight: 9.5 Kg
    • Integrated Wi-Fi

    2) Model

    • Indoor Unit Catalog Code: 1x AS35S2SF2FA-3
    • Indoor Unit Commercial Code: 2501302A2
    • Power: 12000 btu/h
    • Cooling Capacity : 3.5 kW
    • Heating Capacity : 4.2 kW
    • Treated Air: 650 m 3 /h
    • Sound Power Level : 55 dB(A)
    • Sound Pressure Level : 20~39 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (LxPxH): 870x196x301 mm
    • Indoor Unit Weight: 9.5 Kg
    • Integrated Wi-Fi

    Outdoor Unit

    Model:

    • Catalog code Outdoor Unit: 3U55S2SR3FA
    • Outdoor Unit Commercial Code: 2502325G2
    • Max indoor units: up to 3 indoor units

    Energy efficiency:

    • SEER: 8.5
    • SCOP : 4.0
    • Cooling Energy Efficiency Class: A+++
    • Heating Energy Efficiency Class: A+
    • Annual energy consumption in Cooling : 227 kWh/a
    • Annual energy consumption in Heating : 1678 kWh/a

    Performance:

    • Cooling Capacity: 5.5 kW
    • Heating Capacity: 6.8 kW
    • Std cooling absorption: 1.35 kW
    • Std heating absorption: 1.66 kW
    • Sound power level : 64 dB(A)
    • Sound pressure level : 51 dB(A)

    Characteristics:

    • Power (V/Hz/Φ) : 220~240/50/1
    • Refrigerant gas : R-32
    • Guaranteed temperature range:
    • - Cooling: -10° ~ 46°C
    • - Heating: -15° ~ 24° C
    Installation data
    • Pipe diameter Liquid : 6.35 mm (1/4") x3
    • Gas pipe diameter : 9.52 mm (3/8") x3
    • Maximum Piping Length: 50 m
    • Maximum height difference Indoor Unit / Outdoor Unit: 15 m

    Dimensions:

    • External Unit Dimensions (LxPxH): 890x340x700 mm
    • Weight of Outdoor Unit: 51.0 Kg

    5 years of peace of mind with the Haier Plus 5 Guarantee

    Register your new air conditioner and activate the Haier Warranty in just a few steps

    Garanzia

    To do this, keep at hand:
    • The serial numbers to register
    • Your personal and login details
    • The data of the technician contacted

    Models from years prior to 2019 and the following lines are not covered by the Plus 5 Guarantee: Geos +, Hec, Portable, Water heaters, Air barriers, MRV, Chillers, heat recovery units


    R-32 Multisplit Haier

    The earth, everyone's home. Let's protect it!

    Compared to 100 years ago, the global temperature has increased by almost 0.5°C (from 1981 to 1990 +0.48°C). Global warming has attracted the attention of all countries, the main cause of the temperature increase is the release of greenhouse gases into the atmosphere. To remedy the situation, the Montreal Protocol was signed in 1987 and the Kyoto Protocol in 1997. In 2009, the European Union introduced the F-Gas regulation and it was approved in December 2013. The new rules came into force in May 2014 and January 2015. Without the rules indicated by the F-Gas regulation, we would produce 150,000 tons of CO2 per year.

    Very low environmental impact refrigerant

    Haier offers products that comply with the requirements of the European Union's environmental protection standards. To avoid dangerous damage to the environment, Europe is working to reduce greenhouse gas emissions and improve energy efficiency. Units with R32 refrigerant contain less gas and having a lower GWP than R410A units have a lower impact on global warming.

    GWP = Global Warming Potential

    The global warming potential (GWP, in Italian global warming potential) is the measure of how much a molecule of a certain greenhouse gas impacts on the greenhouse effect; the index is based on a relative scale which compares each gas with carbon dioxide, whose GWP has the value 1 by definition. Each GWP value is calculated for a specific time interval.

    In terms of comparison, the GWP of the R32 refrigerant is equivalent to a value of 675, while the GWP of the R410A refrigerant corresponds to a value of 2088.


    Haier IES PLUS

    Ies Plus


    Smart

    With the Haier "hOn" application, you can control all the appliances of the Haier group in your Smart Home from your smartphone or tablet with a single app. Furthermore, through hOn, all the basic functions , purification functions and much more can be managed. The app allows the use of voice commands because it is compatible with Google Assistant and Alexa and therefore also allows voice control

    Smart Ies Plus


    Purification

    The Nano-Water sterilization system improves air quality by providing a refreshing and well-being sensation , like the one you can experience in a forest, while staying comfortably at home.

    The IES Plus air conditioner offers further purification thanks to Steri-Clean 56°C, Self-Hygiene and Self-Clean technologies

    Purificazione Ies


    Comfort

    Low sound level: 19 dB(A) A low noise level ensures peace of mind thanks to the optimized design of the fan, air ducts and motor.

    Comfort Ies Plus

    3D Airflow Continuous movement of the vertical and horizontal louvers directs the airflow anywhere in the room


    Plus Product

    • Nano-Water

    • Self Clean

    • Steri-Clean 56°C

    • Self Hygiene

    • Wi-Fi control with hOn App to remotely control the air conditioner

    • Low sound level

    • 3D airflow: continuous movement of the horizontal and vertical deflectors

    • Easy installation


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: HAIER
    • modello: IES PLUS 7+7+12 55
    • potenza btu: 7000+7000+12000
    • superficie riscaldabile mq: 20/20/35
